4-2 Database Management - Encrypted tablespaces

/* Encryption wallet은 데이터베이스가 shutdown 될 때마다 자동으로 닫힌다. */







난이도: ★★★☆☆

문제 1:  AES192알고리즘을 활용하여 암호화된 테이블스페이스를 생성하여라. (10분)

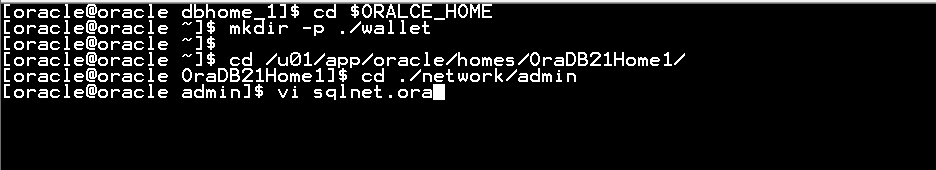

$ cd $ORACLE_HOME
$ mkdir -p ./wallet

$ cd /u01/app/oracle/homes/OraDB21Home1/network/admin

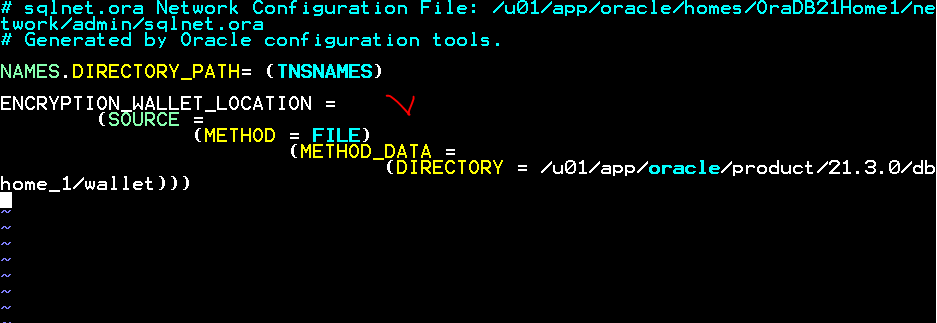

$ vi sqlnet.ora

ENCRYPTION_WALLET_LOCATION=
	(SOURCE =
		(METHOD = FILE)
		(METHOD_DATA =
			(DIRECTORY= /u01/app/oracle/product/21.3.0/dbhome_1/wallet)))

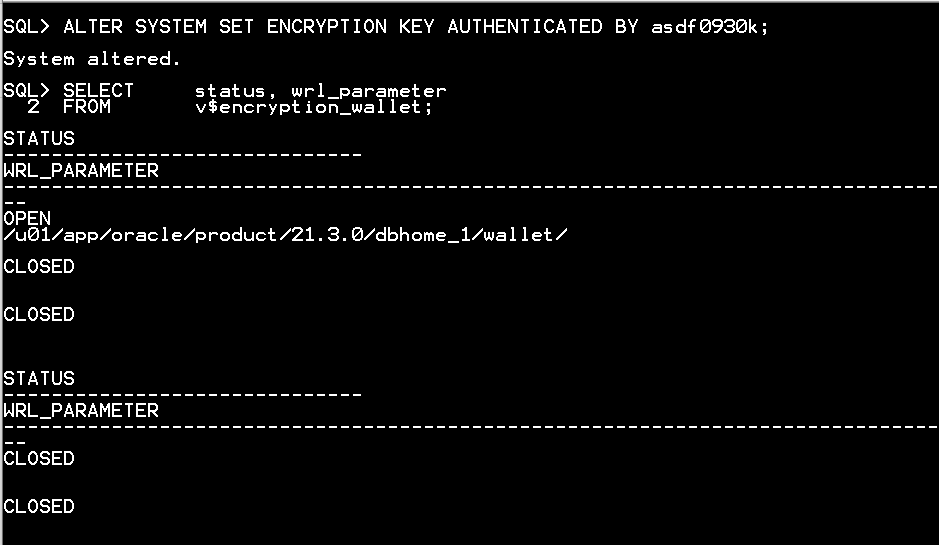

ALTER SYSTEM SET ENCRYPTION KEY AUTHENTICATED BY asdf0930k;

SELECT	status, wrl_parameter
FROM	v$encryption_wallet;

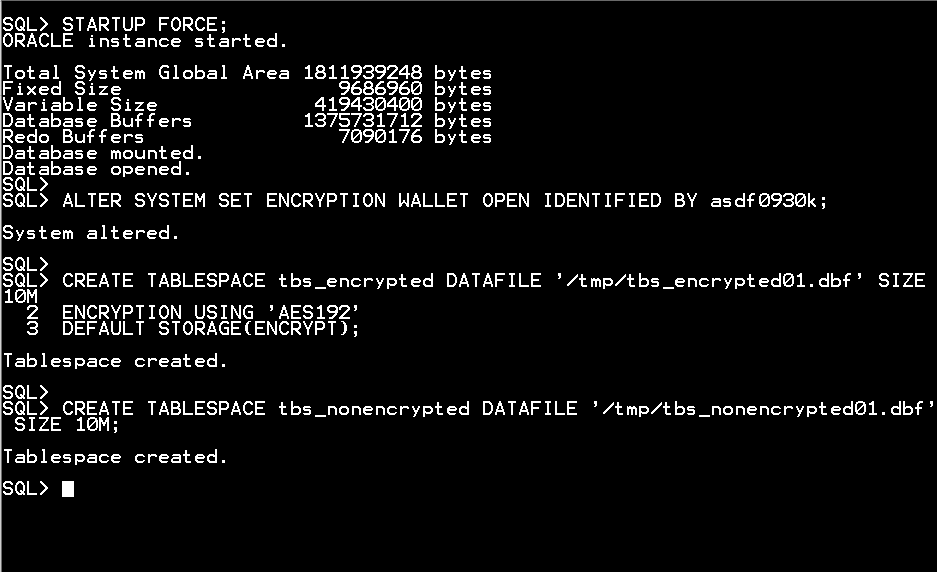

STARTUP FORCE;

ALTER SYSTEM SET ENCRYPTION WALLET OPEN IDENTIFIED BY asdf0930k;

CREATE TABLESPACE tbs_encrypted DATAFILE '/tmp/tbs_encrypted01.dbf' SIZE 10M
ENCRYPTION USING 'AES192'
DEFAULT STORAGE(ENCRYPT);

CREATE TABLESPACE tbs_nonencrypted DATAFILE '/tmp/tbs_nonencrypted01.dbf' SIZE 10M;

CREATE TABLE tbl_encrypted (username VARCHAR2(10), password VARCHAR2(10)) TABLESPACE tbs_encrypted;
INSERT INTO tbs_encrypted VALUES ('MYUSER', 'MYPASS');
COMMIT;
CREATE TABLE tbl_nonencrypted (username VARCHAR2(10), password VARCHAR2(10)) TABLESPACE tbs_nonencrypted;
INSERT INTO tbs_encrypted VALUES ('MYUSER', 'MYPASS');
COMMIT;
ALTER SYSTEM FLUSH BUFFER_CACHE;

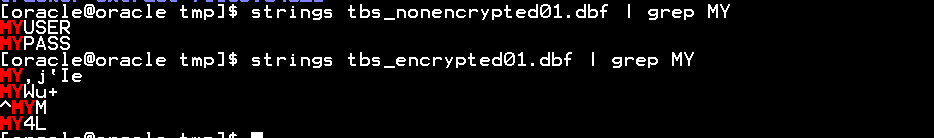

$ strings tbs_nonencrypted01.dbf | grep MY
$ strings tbs_encrypted01.dbf | grep MY

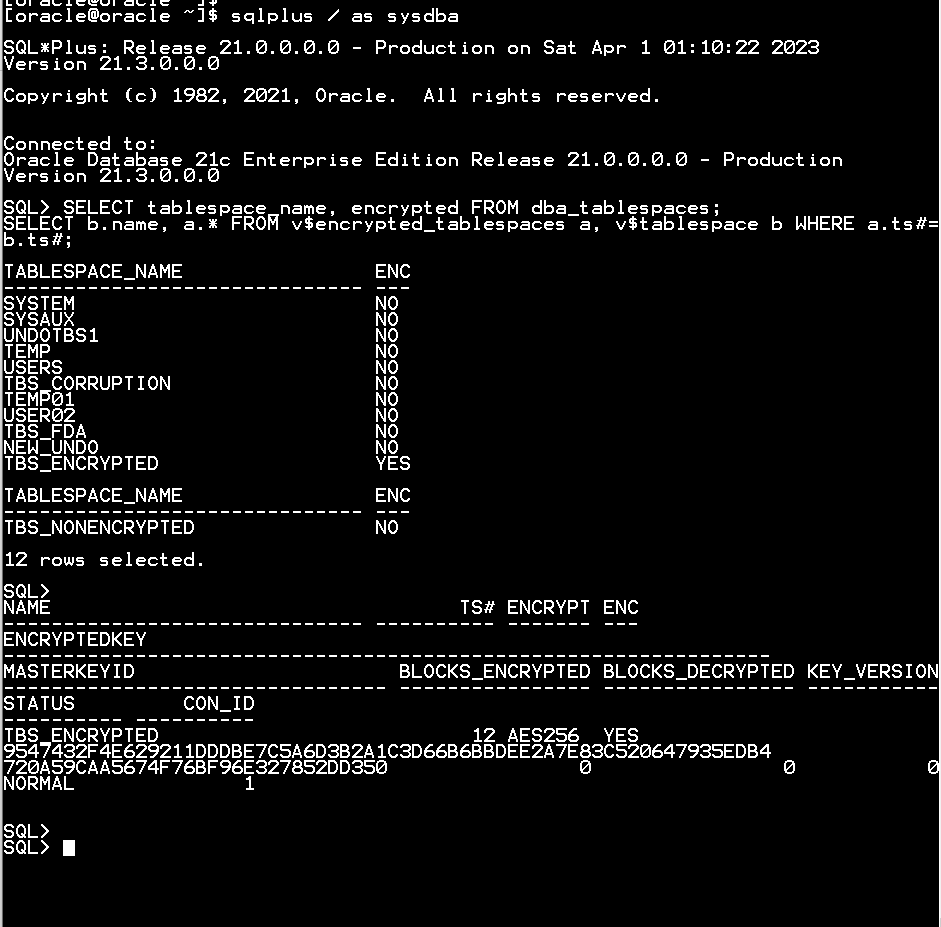

SELECT	tablespace_name, encrypted
FROM	dba_tablespaces;

SELECT	b.name, a.*
FROM	v$encrypted_tablespaces a,
		v$tablespaces b
WHERE	a.ts# = b.ts#
