5-1 Data Warehouse Management - Partitioned tables and indexes using appropriate methods and keys

2023. 4. 8. 19:57

References: Oracle Docs ( Database Concepts)

SELECT partition_name, table_name, tablespace_name, subpartition_count FROM dba_tab_partitions

난이도: ★☆☆☆☆

문제 1: Range Partitioned Table (10분)

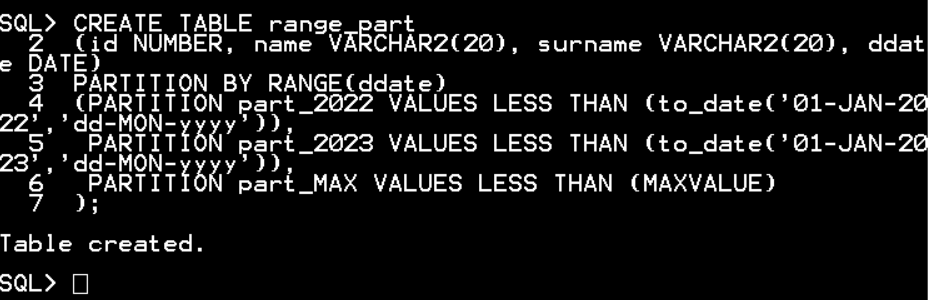

CREATE TABLE range_part (id NUMBER, name VARCHAR2(20), surname VARCHAR2(20), ddate DATE)
PARTITION BY RANGE(ddate)
(PARTITION part_2022 VALUES LESS THAN (to_date('01-JAN-2022','dd-MON-yyyy')),
 PARTITION part_2023 VALUES LESS THAN (to_date('01-JAN-2023','dd-MON-yyyy')),
 PARTITION part_MAX VALUES LESS THAN (MAXVALUE)
);

CREATE TABLE range_part_2 (id NUMBER, name VARCHAR2(20), surname VARCHAR2(20), month NUMBER, day NUMBER)
PARTITION BY RANGE(month, day)
(PARTITION part_jan VALUES LESS THAN (2,1),
 PARTITION part_feb VALUES LESS THAN (3,1),
 PARTITION part_max VALUES LESS THAN (MAXVALUE,MAXVALUE)
);

난이도: ★☆☆☆☆

문제 2: List Partitioned Table (10분)

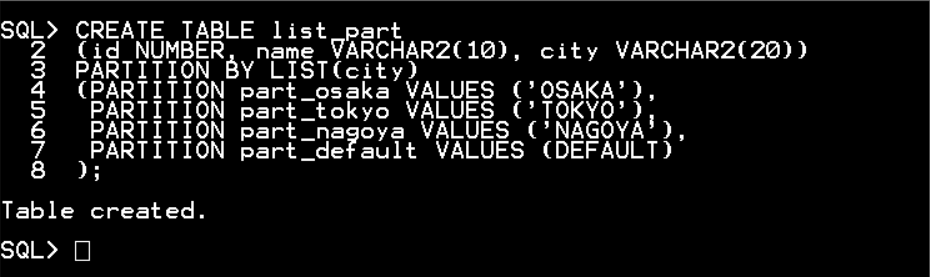

CREATE TABLE list_part
(id NUMBER, name VARCHAR2(10), city VARCHAR2(20))
PARTITION BY LIST(city)
(PARTITION part_osaka VALUES ('OSAKA'),
 PARTITION part_tokyo VALUES ('TOKYO'),
 PARTITION part_nagoya VALUES ('NAGOYA'),
 PARTITION part_default VALUES (DEFAULT)
);

난이도: ★★☆☆☆

문제 3: Hash Partitioned Table (10분)

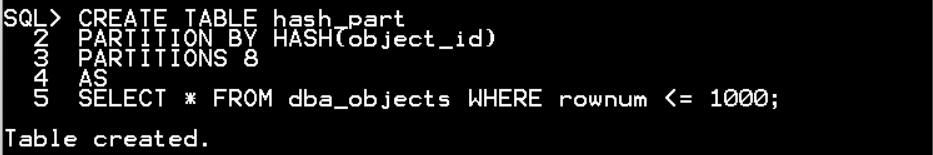

CREATE TABLE hash_part
PARTITION BY HASH(object_id)
PARTITIONS 8
AS
SELECT * FROM dba_objects WHERE rownum <= 1000;

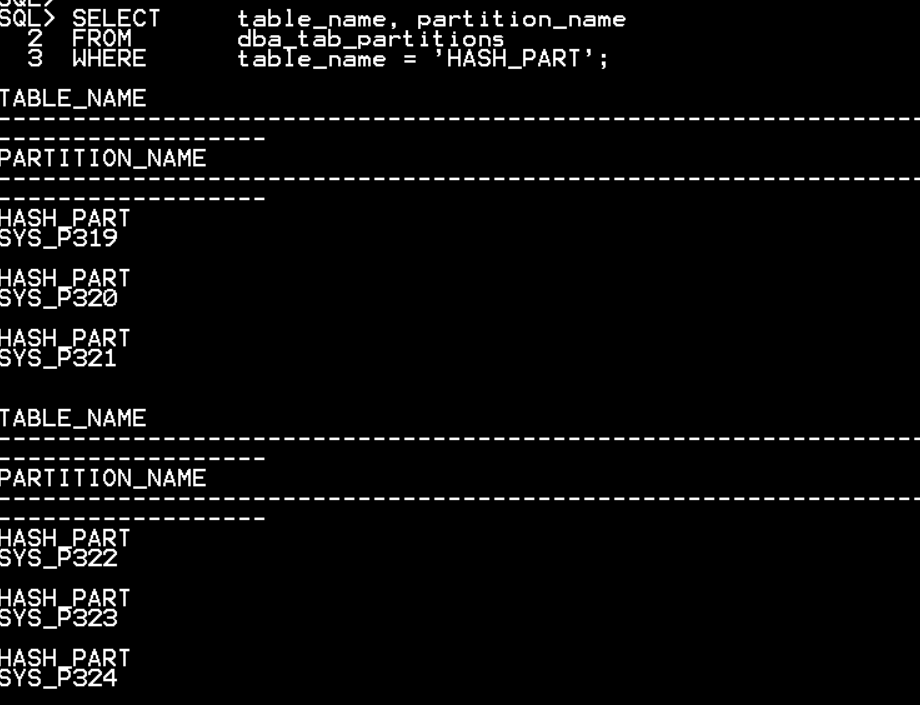

SELECT	table_name, partition_name
FROM	dba_tab_partitions
WHERE	table_name = 'HASH_PART';

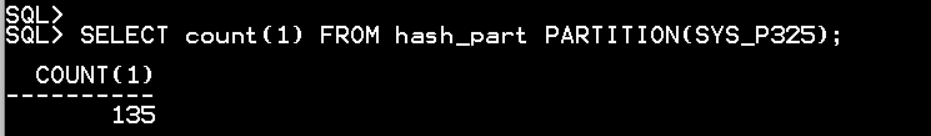

SELECT count(*) FROM hash_part PARTITION(SYS_P325);

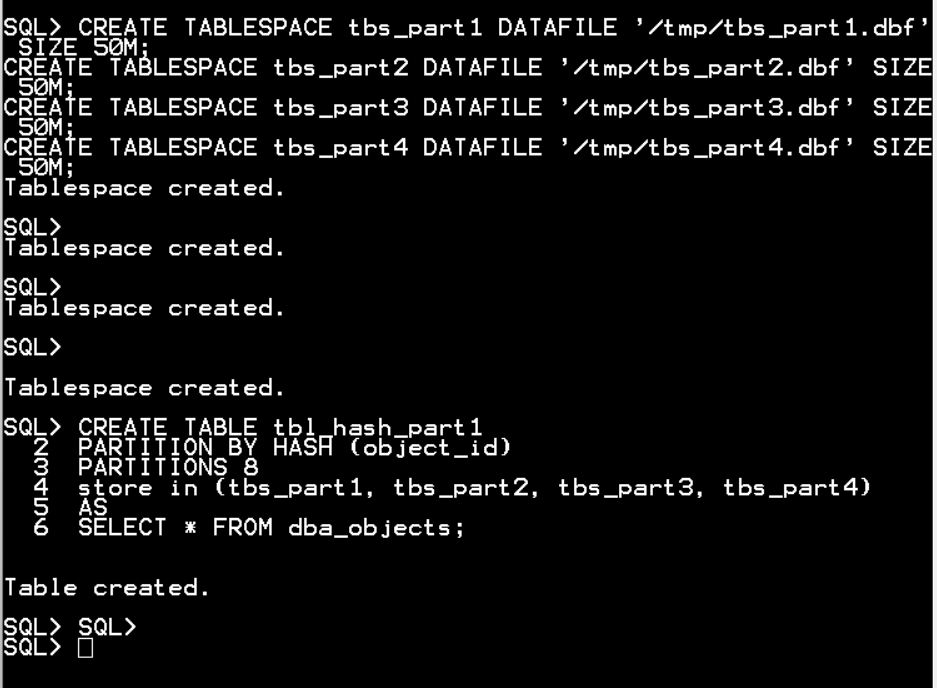

CREATE TABLESPACE tbs_part1 DATAFILE '/tmp/tbs_part1.dbf' SIZE 50M;
CREATE TABLESPACE tbs_part2 DATAFILE '/tmp/tbs_part2.dbf' SIZE 50M;
CREATE TABLESPACE tbs_part3 DATAFILE '/tmp/tbs_part3.dbf' SIZE 50M;
CREATE TABLESPACE tbs_part4 DATAFILE '/tmp/tbs_part4.dbf' SIZE 50M;

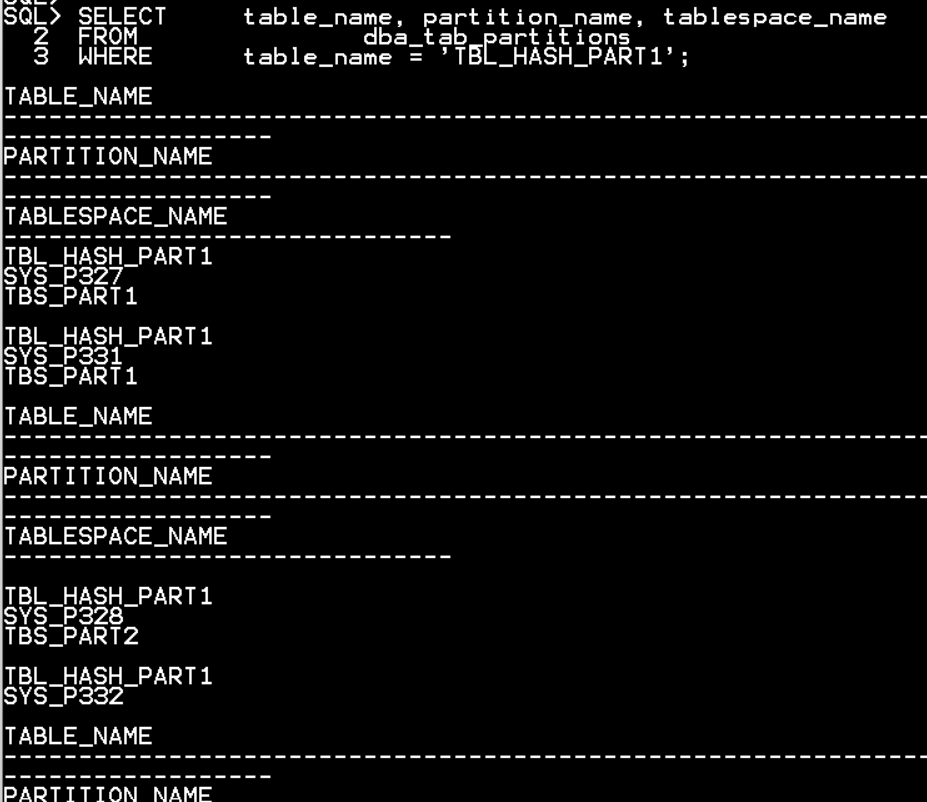

CREATE TABLE tbl_hash_part1
PARTITION BY HASH (object_id)
PARTITIONS 8
store in (tbs_part1, tbs_part2, tbs_part3, tbs_part4)
AS
SELECT * FROM dba_objects;

난이도: ★★☆☆☆

문제 4: Interval Partitioned Table (daily, monthly) (15분)

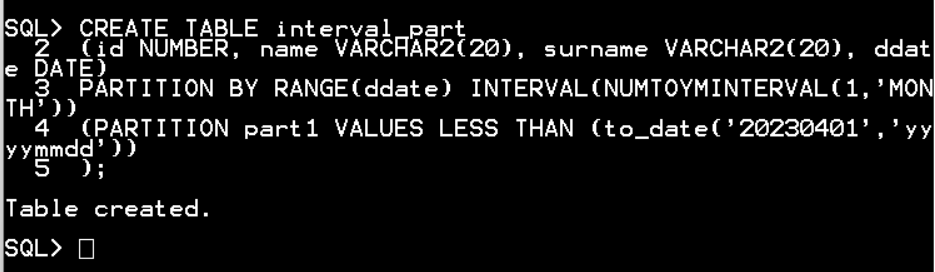

CREATE TABLE interval_part
(id NUMBER, name VARCHAR2(20), surname VARCHAR2(20), ddate DATE)
PARTITION BY RANGE(ddate) INTERVAL(NUMTOYMINTERVAL(1,'MONTH'))
(PARTITION part1 VALUES LESS THAN (to_date('20230401','yyyymmdd'))
);

CREATE TABLE interval_part_02
(id NUMBER, name VARCHAR2(20), surname VARCHAR2(20), ddate DATE)
PARTITION BY RANGE(ddate) INTERVAL(NUMTODSINTERVAL(1,'DAY'))
(PARTITION part1 VALUES LESS THAN (to_date('20230401','yyyymmdd'))
);

난이도: ★★★☆☆

문제 5: Reference Partitioned View (10분)

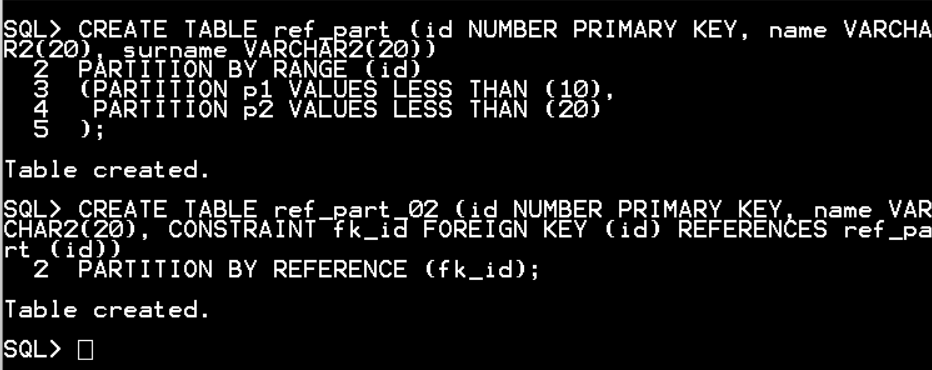

CREATE TABLE ref_part (id NUMBER PRIMARY KEY, name VARCHAR2(20), surname VARCHAR2(20))
PARTITION BY RANGE (id)
(PARTITION p1 VALUES LESS THAN (10),
 PARTITION p2 VALUES LESS THAN (20)
);

CREATE TABLE ref_part_02 (id NUMBER PRIMARY KEY, name VARCHAR2(20), CONSTRAINT fk_id FOREIGN KEY (id) REFERENCES ref_part (id))
PARTITION BY REFERENCE (fk_id);

난이도: ★★☆☆☆

문제 6: Range-List Partitioning (10분)

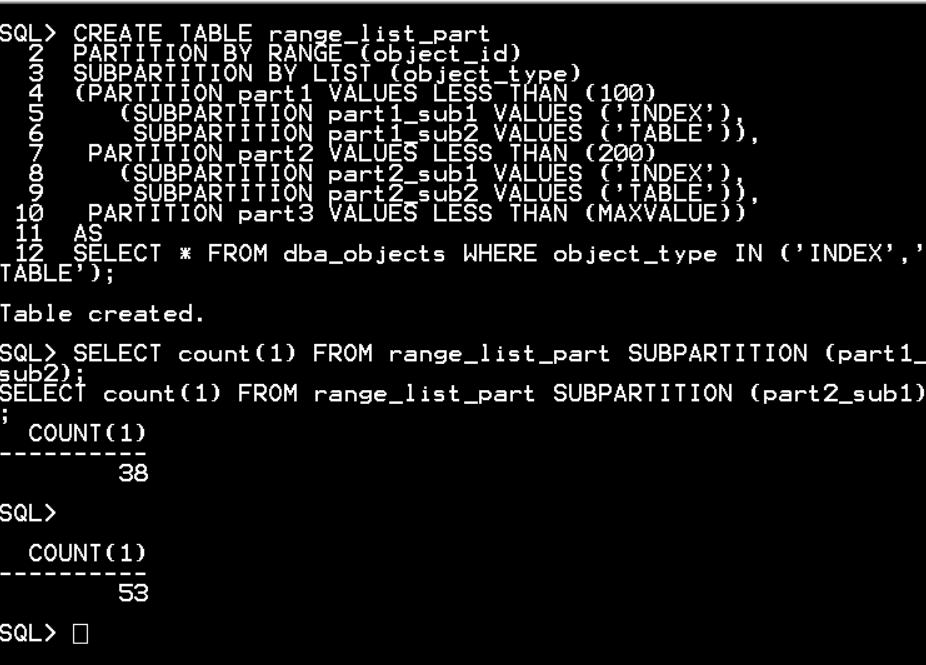

CREATE TABLE range_list_part
PARTITION BY RANGE (object_id)
SUBPARTITION BY LIST (object_type)
(PARTITION part1 VALUES LESS THAN (100)
	(SUBPARTITION part1_sub1 VALUES ('INDEX'),
     SUBPARTITION part1_sub2 VALUES ('TABLE')),
 PARTITION part2 VALUES LESS THAN (200)
 	(SUBPARTITION part2_sub1 VALUES ('INDEX'),
     SUBPARTITION part2_sub2 VALUES ('TABLE')),
 PARTITION part3 VALUES LESS THAN (MAXVALUE)
 )
 AS
 SELECT * FROM dba_objects WHERE object_type IN ('INDEX','TABLE');


SELECT count(1) FROM range_list_part SUBPARTITION (part1_sub2);
SELECT count(1) FROM range_list_part SUBPARTITION (part2_sub1);

난이도: ★★☆☆☆

문제 7: Range-Hash Partitioning (10분)

CREATE TABLE range_hash_part
PARTITION BY RANGE (object_id)
SUBPARTITION BY HASH (namespace)
SUBPARTITIONS 4
(PARTITION part1 VALUES LESS THAN (100),
 PARTITION part2 VALUES LESS THAN (200),
 PARTITION part3 VALUES LESS THAN (MAXVALUE))
AS
SELECT * FROM dba_objects WHERE rownum <= 1000;

난이도: ★★☆☆☆

문제 8: Range-Range Partitioning (10분)

CREATE TABLE range_range_part
PARTITION BY RANGE (object_id)
SUBPARTITION BY RANGE (namespace)
(PARTITION part1 VALUES LESS THAN (100)
	(SUBPARTITION part1_sub1 VALUES LESS THAN (5),
	 SUBPARTITION part1_sub2 VALUES LESS THAN (MAXVALUE)),
 PARTITION part2 VALUES LESS THAN (MAXVALUE)
	(SUBPARTITION part2_sub1 VALUES LESS THAN (5),
	 SUBPARTITION part2_sub2 VALUES LESS THAN (MAXVALUE))
)
AS
SELECT * FROM dba_objects WHERE rownum <= 300;



SELECT	table_name, partition_name, subpartition_count
FROM	dba_tab_partitions
WHERE	table_name = 'RANGE_RANGE_PART';

난이도: ★★☆☆☆

문제 9: List-Range Partitioning (10분)

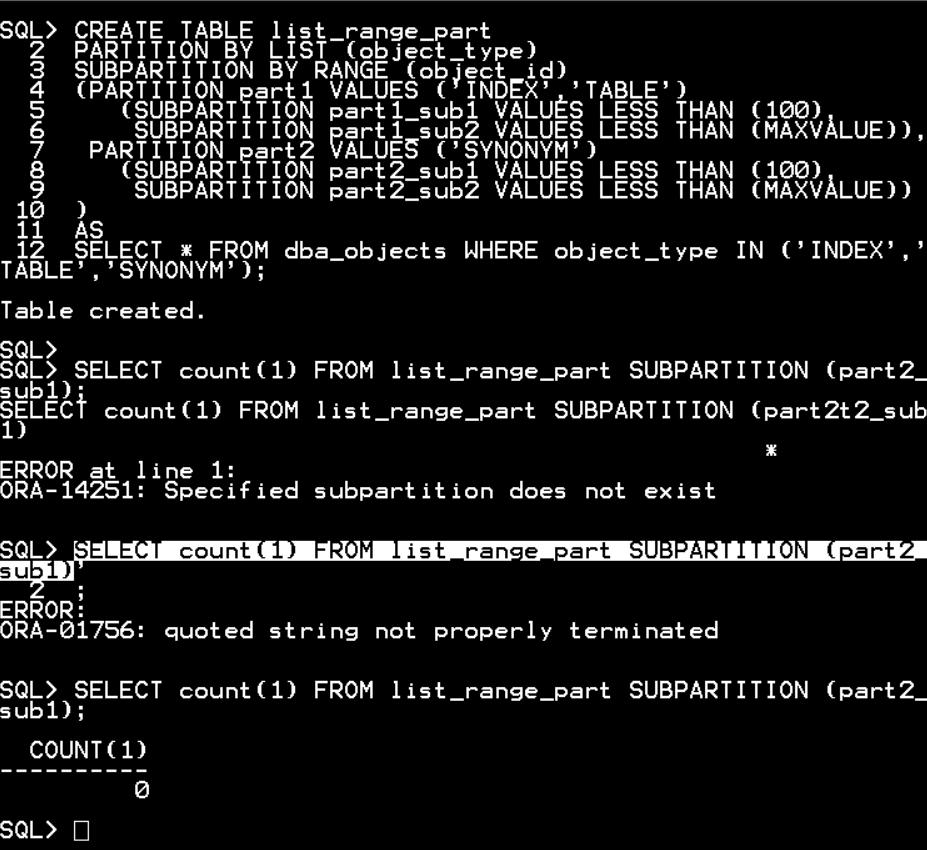

CREATE TABLE list_range_part
PARTITION BY LIST (object_type)
SUBPARTITION BY RANGE (object_id)
(PARTITION part1 VALUES ('INDEX','TABLE')
	(SUBPARTITION part1_sub1 VALUES LESS THAN (100),
	 SUBPARTITION part1_sub2 VALUES LESS THAN (MAXVALUE)),
 PARTITION part2 VALUES ('SYNONYM')
	(SUBPARTITION part2_sub1 VALUES LESS THAN (100),
	 SUBPARTITION part2_sub2 VALUES LESS THAN (MAXVALUE))
)
AS
SELECT * FROM dba_objects WHERE object_type IN ('INDEX','TABLE','SYNONYM');

난이도: ★★☆☆☆

문제 10: List-List Partitioning (10분)

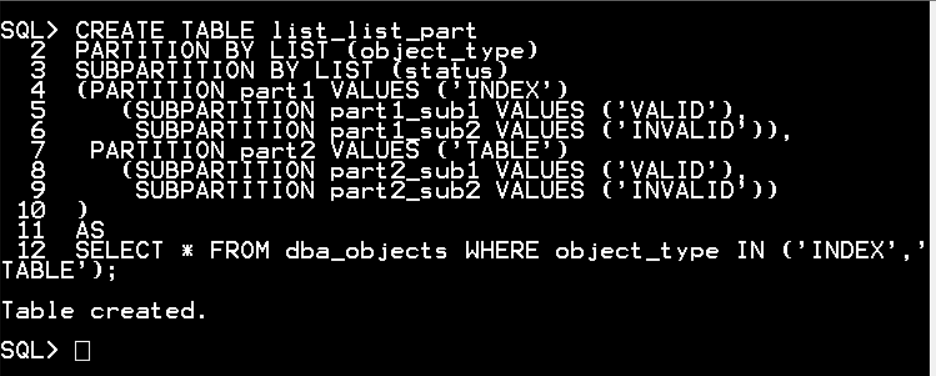

CREATE TABLE list_list_part
PARTITION BY LIST (object_type)
SUBPARTITION BY LIST (status)
(PARTITION part1 VALUES ('INDEX')
	(SUBPARTITION part1_sub1 VALUES ('VALID'),
	 SUBPARTITION part1_sub2 VALUES ('INVALID')),
 PARTITION part2 VALUES ('TABLE')
	(SUBPARTITION part2_sub1 VALUES ('VALID'),
	 SUBPARTITION part2_sub2 VALUES ('INVALID'))
)
AS
SELECT * FROM dba_objects WHERE object_type IN ('INDEX','TABLE');

난이도: ★★☆☆☆

문제 11: Hash-Hash Partitioning (10분)

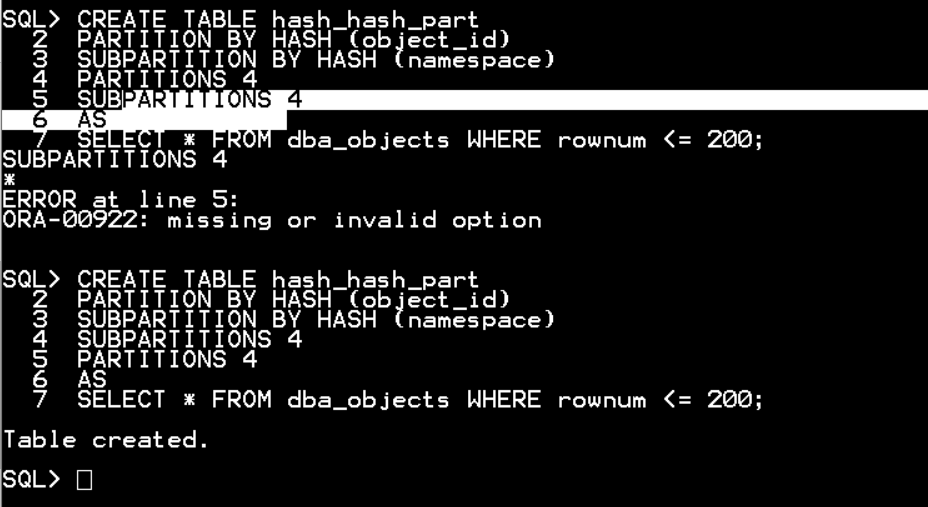

/* SUBPARTITIONS 구문을 PARTITIONS보다 먼저 사용해야 한다. */

CREATE TABLE hash_hash_part
PARTITION BY HASH (object_id)
SUBPARTITION BY HASH (namespace)
SUBPARTITIONS 4
PARTITIONS 4
AS
SELECT * FROM dba_objects WHERE rownum <= 200;

난이도: ★★☆☆☆

문제 12: Interval-List Partitioning (10분)

CREATE TABLE interval_list_part
PARTITION BY RANGE (created) INTERVAL (NUMTOYMINTERVAL(1,'MONTH'))
SUBPARTITION BY LIST (object_type)
(PARTITION part1 VALUES LESS THAN (to_date('20230101','yyyymmdd'))
	(SUBPARTITION part1_table VALUES ('TABLE'),
	 SUBPARTITION part1_index VALUES ('INDEX'))
)
AS
SELECT * FROM dba_objects WHERE object_type IN ('TABLE','INDEX');

난이도: ★★☆☆☆

문제 13: Interval-Range Partitioning (10분)

CREATE TABLE interval_range_part
PARTITION BY RANGE (created) INTERVAL (NUMTOYMINTERVAL(1,'MONTH'))
SUBPARTITION BY RANGE (object_id)
(PARTITION part1 VALUES LESS THAN (to_date('20230101','yyyymmdd'))
	(SUBPARTITION part1_table VALUES LESS THAN (10),
	 SUBPARTITION part1_index VALUES LESS THAN (MAXVALUE))
)
AS
SELECT * FROM dba_objects;

난이도: ★★☆☆☆

문제 14: Interval-Hash Partitioning (10분)

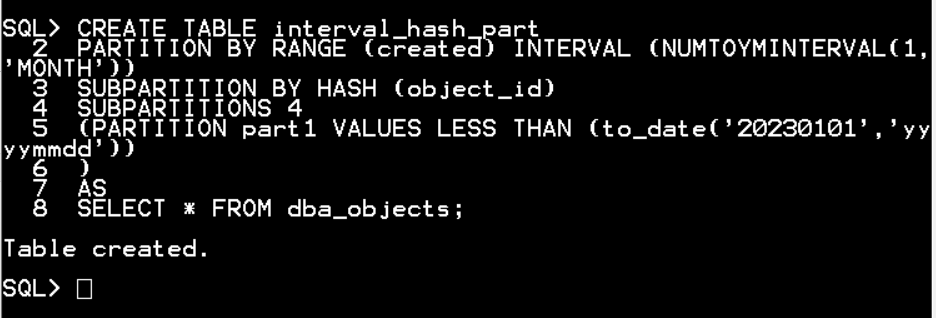

CREATE TABLE interval_hash_part
PARTITION BY RANGE (created) INTERVAL (NUMTOYMINTERVAL(1,'MONTH'))
SUBPARTITION BY HASH (object_id)
SUBPARTITIONS 4
(PARTITION part1 VALUES LESS THAN (to_date('20230101','yyyymmdd'))
)
AS
SELECT * FROM dba_objects;

난이도: ★★★☆☆

문제 15: Virtual Column based Partitioning (10분)

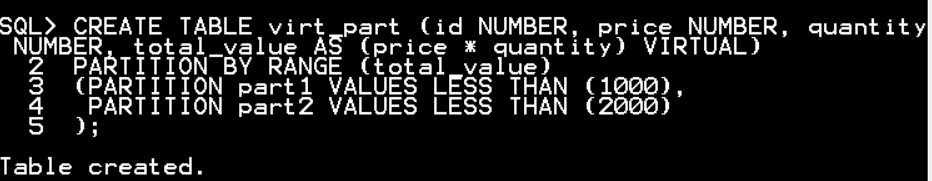

CREATE TABLE virt_part (id NUMBER, price NUMBER, quantity NUMBER, total_value AS (price * quantity) VIRTUAL)
PARTITION BY RANGE (total_value)
(PARTITION part1 VALUES LESS THAN (1000),
 PARTITION part2 VALUES LESS THAN (2000)
);

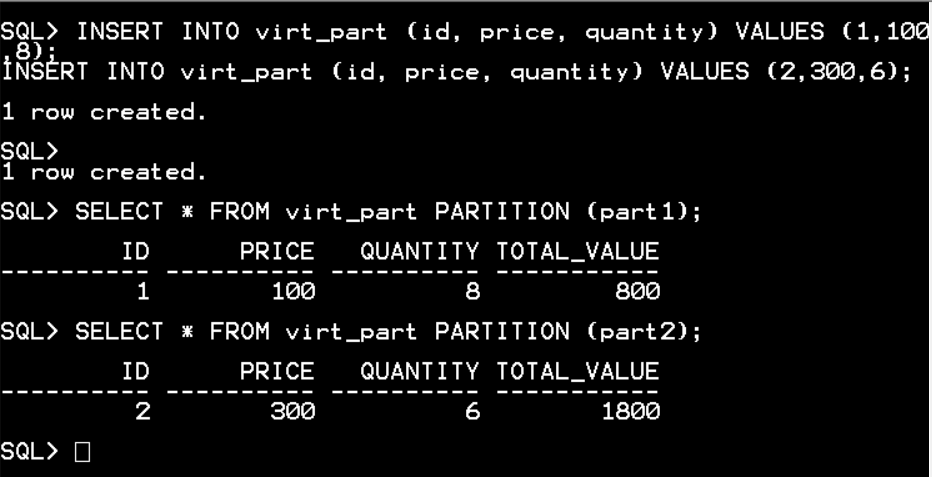

INSERT INTO virt_part (id, price, quantity) VALUES (1,100,8);
INSERT INTO virt_part (id, price, quantity) VALUES (2,300,6);

SELECT * FROM virt_part PARTITION (part1);
SELECT * FROM virt_part PARTITION (part2);
